Gate Hinge Comparison Chart: Key Feature Breakdown Across Leading Models
Choosing the right gate hinge is more than a mechanical decision, it's a critical factor that impacts safety, function, and durability. With the wide range of hinges available, from self-closing safety models to heavy-duty industrial solutions, it's essential to compare not just the brand or cost, but also the technical specifications that determine real-world performance. This table helps streamline that process by organizing hinge options by key attributes, such as adjustability, gate gap allowances, frame compatibility, and safety features. Whether you're specifying products for a commercial fence installation or replacing a residential gate hinge, these feature definitions will help you interpret the data clearly and make confident, informed choices.
| Product Series | Cornerstone2 | Cornerstone2 | Cornerstone2 | Cornerstone2 | Cornerstone2 | Cornerstone2 | Cornerstone2 | Cornerstone | Cornerstone | Cornerstone | Cornerstone | Nautilus | Heavy-Duty Self-Closing Ball Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image |
|
|
|
|
|
|
|
|
|
|
|
|
|

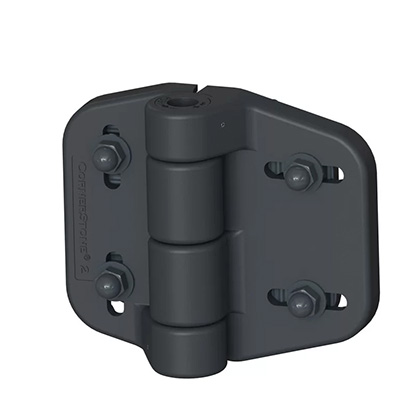

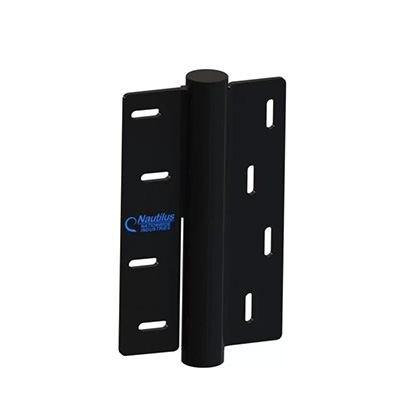

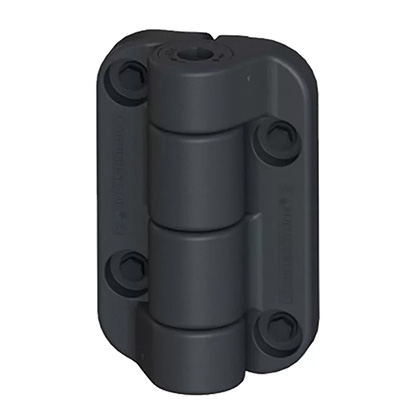

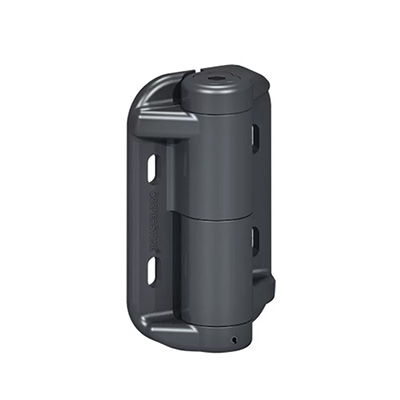

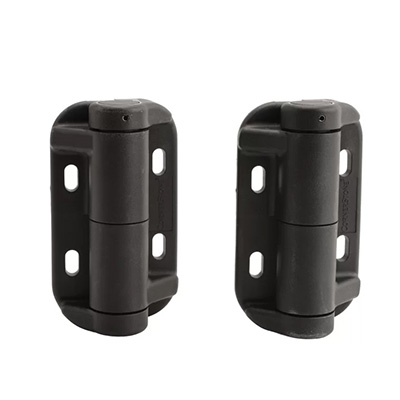

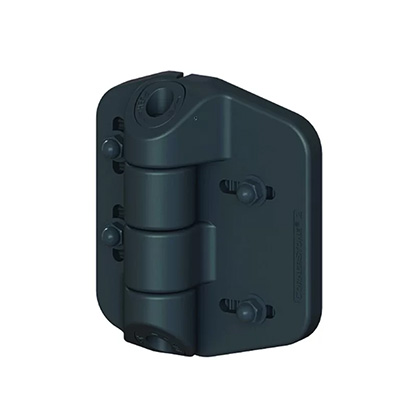

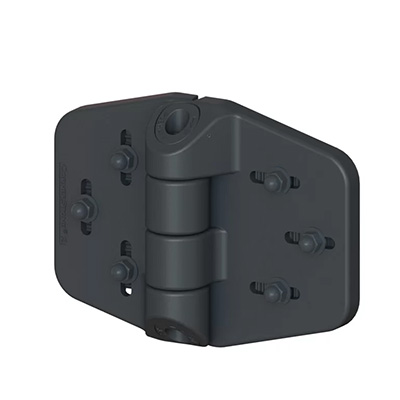

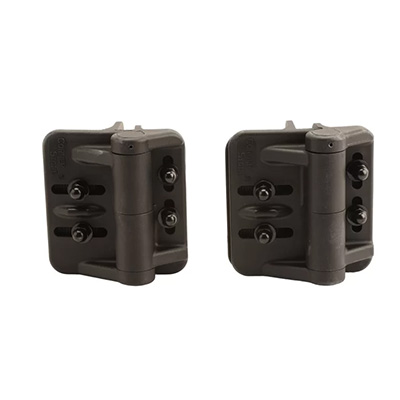

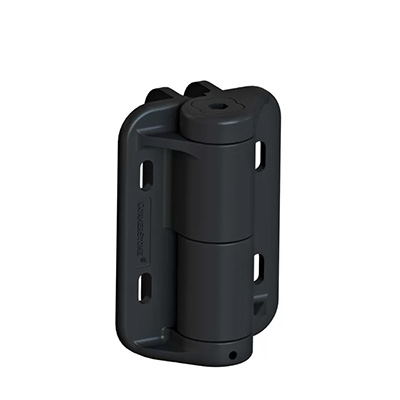

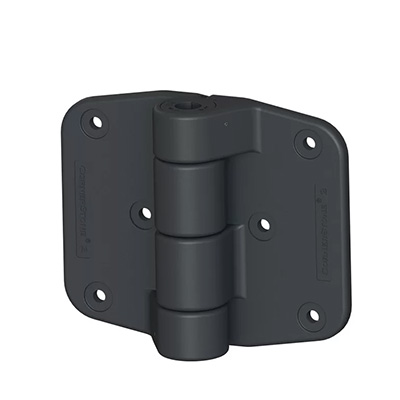

| Part # | C2H200F | C2H300F | C2H350F | C2H100N | C2H120NB | C2H350N | C2H095F | CH200FR | CH090 | CH101V | CH102V | NTLS-L-AA NTLS-R-AA |

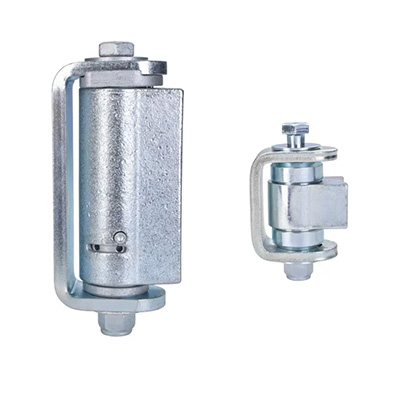

HDBYSC-SWM-SWM |
| Adjustability | .95" Vert/Horz | 1" Vert/Horz | .96" Vert/Horz | .96" Vert/Horz | 1.2" Vert/Horz | Vert | Vert | 0.5" Vert/Horz | 0.48" Horz | ||||
| Min Gate Gap | 0.55" | 0.75" | 0.75" | 0.75" | 0.75" | 0.75" | 0.5" | 0.46" | 0.75" | 0.23" | 1.05" | 2.56" | |
| Gate Gap Max | 1.5" | 1.75" | 1.71" | 0.75" | 0.75" | 0.75" | 1.46" | 1.66" | 0.75" | 1.25" | 0.23" | 1.55" | 3.04" |
| Min Post Thickness | 1.5" | 1.5" | 1.5" | 1" | 1" | 1.5" | 1.5" | Ø 1.375" | 0.88" | 1.5" | |||
| Min Post Width | 1.5" | 3.1" | 3" | 1" | 1.25" | 3" | 1.75" | 0.88" | 1" | 1" | 1.4" | ||
| Min Frame Thickness | 1.5" | 1.5" | 1.5" | 1" | 1" | 1.5" | 1.5" | Ø 1.875" | 0.88" | 1.5" | |||
| Min Frame Width* | 1.8" | 2.61" | 2.5" | 1" | 1.25" | 2.5" | 1.5" | 0.88" | 1" | 1" | 1.4" | ||
| Rating* | 75 lbs. | 75 lbs. | 135 lbs. | 75 lbs. | 135 lbs. | 135 lbs. | 60 lbs. | 75 lbs. | 60 lbs. | 75 lbs. | 75 lbs. | 125 lbs. | |
| Point Load* | 1500 lbs. | 2000 lbs. | 1500 lbs. | 1700 lbs. | 900 lbs. | ||||||||
| Self- Closing | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Turn-N-Go Tensioning | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||||
| Anti-Climb Design | Yes | Yes | Yes | ||||||||||
| Adjustable Closing Speeds | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Chain Link | Yes | Yes | |||||||||||
| Metal | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| Vinyl | Yes | Yes | Yes | Yes | |||||||||
| Wood | Yes | Yes | Yes | Yes | |||||||||
| Colors/Shop Now | Black White |
Black | Black | Black White |
Black | Black | Black | Black | Black | Black | Black | NTLS-L-AA NTLS-R-AA |
Steel |
*Per Hinge
Features/Attribute Summaries
Not sure what all the hinge features in the table actually mean? No worries, we've got you covered. Below is a quick guide that breaks down each term so you know exactly what to look for and why it matters.
Adjustability
This refers to whether the hinge offers horizontal, vertical, or tension adjustments. Hinges with built-in adjustability make installation easier and allow fine-tuning after mounting, ensuring smooth operation and proper alignment even if the gate or post shifts slightly over time.
Min Gate Gap
The minimum spacing allowed between the gate and post. A tight gate gap is important for appearance, security, and compliance with certain pool or safety standards. Knowing this helps installers minimize play while preventing friction during operation.
Gate Gap Max
This is the largest allowable space between the gate and post for a hinge to function properly. Understanding this range helps ensure compatibility with wider or offset installations without compromising gate control.
Min Post Thickness
Indicates the thinnest post material that the hinge can safely support. This ensures the hinge hardware can be securely fastened without compromising the post structure.
Min Post Width
The narrowest post width that accommodates the hinge mounting pattern. If a post is narrower than this dimension, the hinge may not be installable or might lack the stability required for long-term use.
Min Frame Thickness
The least amount of gate frame thickness required to properly install the hinge. Too thin a frame may not offer enough support, leading to poor performance or safety concerns.
Min Frame Width*
This dimension tells you the smallest width of gate frame where the hinge will mount securely and operate correctly. It's important for ensuring a tight fit and avoiding overhang.
Rating*
This is the standard weight rating, often in pounds, indicating how much static load the hinge can support during regular operation. Higher ratings are suitable for heavier gates or frequent use.
Point Load*
This specifies the maximum force the hinge can handle when concentrated at a single point, typically during a heavy slam or impact. It's critical in high-traffic or security applications where stress isn't evenly distributed.
Self-Closing
Denotes whether the hinge includes a mechanism that automatically returns the gate to a closed position after opening. Self-closing hinges are commonly required for safety gates and code-compliant pool enclosures.
Turn-N-Go Tensioning
A user-friendly feature allowing quick tension adjustments without disassembly or specialized tools. Ideal for installers and maintenance teams who need to fine-tune gate closing speeds and force in the field.
Anti-Climb Design
A security feature that discourages climbing by minimizing footholds or protrusions. These hinges are often used on perimeter security, playgrounds, and institutional gates.
Adjustable Closing Speeds
Indicates whether the hinge allows users to set how fast the gate closes. Adjustable speed control is useful for high-traffic areas, accessibility requirements, or when precise gate motion is important.
*Per Hinge
