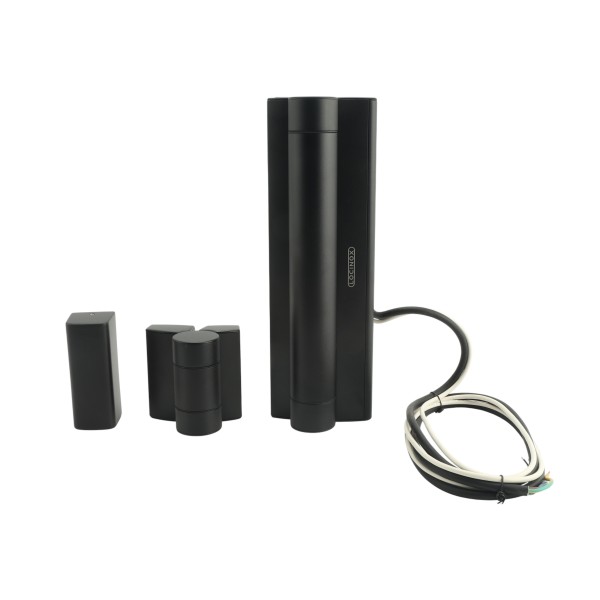

Locinox Magnus Motorized Hinge & Gate Closer for Pedestrian Gates (Black) - MAGNUS-9005

Ultra-modern, highly durable, the Magnus is an amazing new motorized hinge and gate closer pair for pedestrian gates. With a brushless and reversible motor, the Magnus quickly recognizes behavior from all kinds of guests including more forceful openings and closes. Your access can be controlled by the intuitive Locinox app to ensure your gate remains closed at any time you want, for as long as you want it to remain closed.

Specifications:

• Motorized gate closer with integrated electronics
• 75 Nm torque
• Fits on post profiles from 2 3/8" and gate profiles from 1 9/16"
• Steel gear box
• Anodized aluminium cover
• Fast and easy fixation with Quick-Fix bolts
• Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
• Input main power supply: 110V AC to 240V AC
• Motor voltage: 24V DC
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability
• 6 1/2' cable between motor and connection module
• Compact and vandal-resistant design
• Configuration via app
• Tested up to 500 000 cycles
• EN 16005 Compliant
