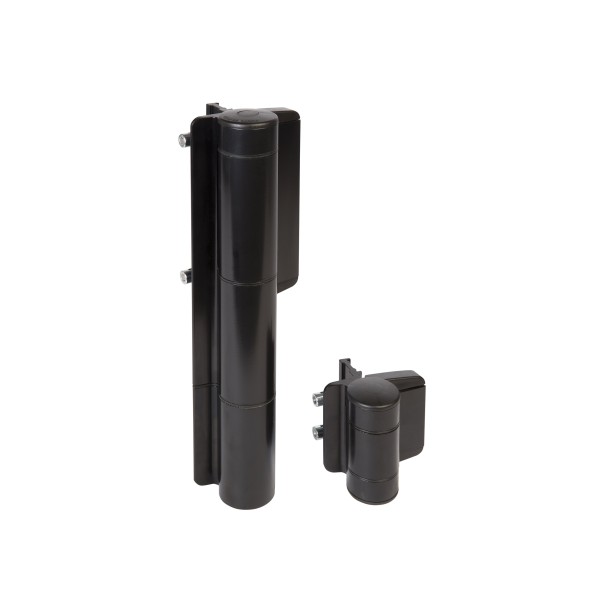

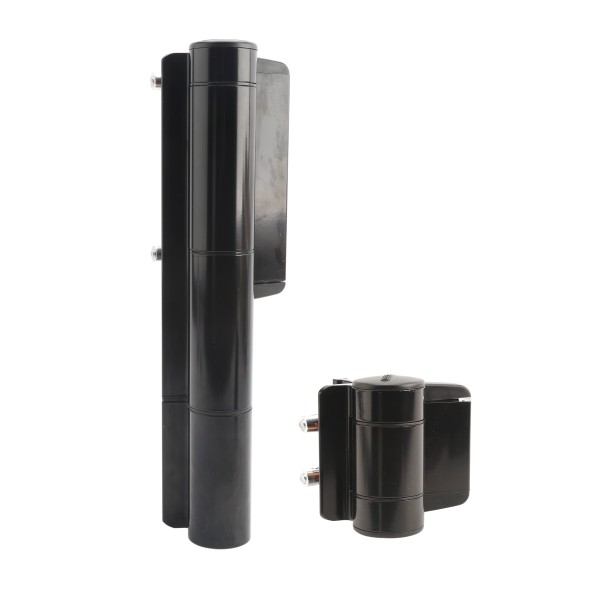

Locinox Mammoth 180° Hydraulic Gate Closer and Hinge (330lbs Capacity, RAL9005 Black) - MAMMOTH180-9005
Details
Locinox Mammoth 180° Hydraulic Gate Closer and Hinge (330lbs Capacity, RAL9005 Black) - MAMMOTH180-9005
Built strong for heavy duty spaces, the Mammoth180 is a 180° hydraulic gate closer with an included hinge for heavy, 330lb gates. An easily installed bolt on design has your gate closer up and running in minutes, with minimal maintenance required with its flush design.
Specifications:
- 180° self-closing double bearing hinge with adjustable closing speed and final snap
- Weatherresistant aluminum housing
- Hydraulic damping
- ADA compliant (< 5 lbs; max 16 Nm) from gate widths of 3ft. or more
- Vandal and tamper resistant
- For left and right handed gates
- Installation gap 9/16 min up to 1-3/8" max (ornamental); 9/16" adjustability in height
| SKU | MAMMOTH180-9005 |
|---|---|
| Product Type | Hydraulic Gate Closer |
| Manufacturer | Locinox |
| Mounting Type | Bolt-On |
| Finish | Powder-Coated Black |
| Max Gate Weight | 330 lbs. |
| Max Hinge Angle | 180° |
| Information Sheet | Download PDF file |
| Specifications Sheet | Download PDF file |
| Material | Steel |
| Lock Series | Mammoth |
| Manual | Download PDF file |
| Alternate Sku | P00009620-9005 |
| Intrastat Code | 8302609000 |
| EAN Code | 5414768063514 |
